Digital I/O Logic: NPN vs PNP

This page explains the OV20i's digital I/O configuration and how to properly wire NPN and PNP devices to the camera's M12 A-Coded 17 Pin connector.

OV20i Digital I/O Overview​

Hardware Configuration​

The OV20i provides 5 digital I/O lines through the M12 A-Coded 17 Pin Power I/O connector:

I/O Distribution:

  • 1 Trigger Input - Primary trigger signal input
  • 2 Digital Inputs - Additional sensor inputs
  • 2 Digital Outputs - Status and result outputs

Electrical Specifications​

  • Operating Voltage: 19-24 VDC input
  • Output Current: Max 100mA per output
  • Input Logic: Pull to GND to activate input
  • Output Logic: When active, output sinks to GND (NPN-compatible)
  • Thermal Protection: DIO GND tied through thermal fuse

Understanding NPN vs PNP Logic​

NPN (Sinking) Logic​

NPN devices sink current to ground when active.

Characteristics:

  • Active State: Device connects signal to GND (0V)
  • Inactive State: Signal remains floating or pulled high
  • Current Flow: From positive supply → through load → to device → to ground
  • Common Use: Most modern industrial sensors and PLCs

PNP (Sourcing) Logic​

PNP devices source current from positive supply when active.

Characteristics:

  • Active State: Device connects signal to positive supply (+24V)
  • Inactive State: Signal remains floating or pulled low
  • Current Flow: From device → through load → to ground
  • Common Use: Some European industrial equipment

OV20i Digital Input Configuration​

Native Input Logic: NPN Compatible​

The OV20i inputs are designed for NPN (sinking) devices.

Input Activation: Pull to GND to activate input

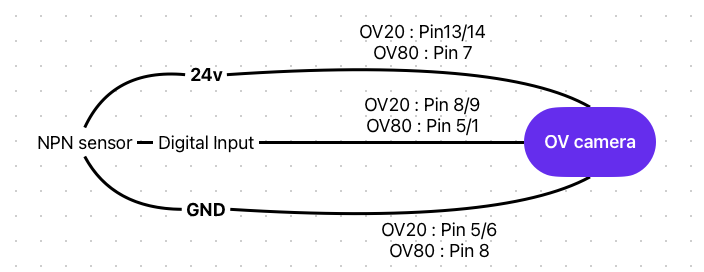

Connecting NPN Sensors (Direct Connection)​

Wiring for NPN Sensors:

NPN

Operation:

  • Sensor Inactive: Input floats high (inactive)
  • Sensor Active: Sensor pulls input to GND (active)

Connecting PNP Sensors (Pull-Down Required)​

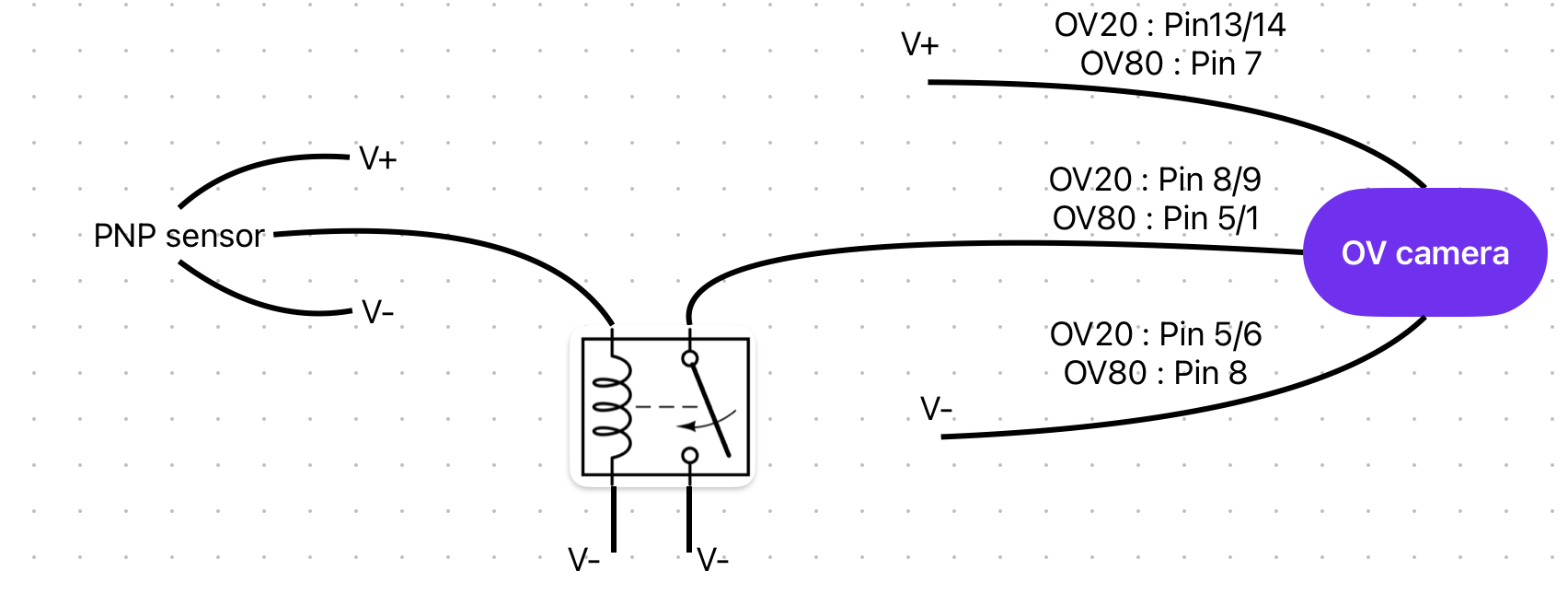

Wiring for PNP Sensors:

NPN

Pull-Down Resistor: Typically 10kΩ between input and GND

Operation:

  • Sensor Inactive: Pull-down resistor holds input at GND (inactive)
  • Sensor Active: Sensor overpowers pull-down, raising input voltage (may not activate reliably)
Important

PNP sensors require additional interface circuitry for reliable operation with OV20i inputs.

OV20i Digital Output Configuration​

Native Output Logic: NPN (Sinking)​

The OV20i outputs are NPN-compatible sinking outputs.

Output Behavior:

  • Active: Output sinks to GND (0V)
  • Inactive: Output floating (high impedance)
  • Max Current: 100mA per output
  • External Power Required: Outputs require external power supply

Interface Options:

  • Relay Module: Use output to drive relay coil, relay contacts switch PNP load
  • Transistor Circuit: Use output to control PNP transistor for load switching

Grounding and Common Reference​

Critical Grounding Requirements​

DIO GND must be connected to GND for digital input functionality to work. DIO GND is tied to GND through a thermal fuse.

Multi-Supply Systems: When connecting the OV20i's digital I/O lines to a system that is powered from a different power supply, use this pin to tie the grounds together.

⚠️ Common Wiring Issues​

Ground Loop Problems​

  • Symptom: Erratic input behavior, false triggers
  • Solution: Ensure single-point grounding, use DIO GND properly

Insufficient Output Current​

  • Symptom: Loads don't activate reliably
  • Solution: Verify load current < 100mA, use relay for higher current loads

PNP Sensor Incompatibility​

  • Symptom: Inputs don't respond to PNP sensors
  • Solution: Add pull-down resistors or use interface modules

Floating Inputs​

  • Symptom: Random triggering when no sensor connected
  • Solution: Connect unused inputs to DIO GND through 10kΩ resistor

Best Practices​

Design Guidelines​

  • ✅ Use NPN devices when possible for direct compatibility
  • ✅ Verify ground connections before applying power
  • ✅ Add protection (fuses/surge suppressors) for industrial environments
  • ✅ Document wiring for maintenance and troubleshooting

Testing Procedures​

  1. Verify supply voltages (19-24 VDC)
  2. Check continuity of ground connections
  3. Test inputs with multimeter before connecting sensors
  4. Validate outputs with appropriate loads
  5. Monitor current draw to ensure < 100mA per output
