OV20i Technical Specifications

This page provides comprehensive technical specifications for the OV20i smart camera, including hardware capabilities, performance parameters, pinouts, and environmental requirements.

System Overview​

Model: OV20i Industrial AI Vision Camera

Application: Advanced machine vision with integrated AI capabilities

Physical Specifications​

ParameterSpecificationNotes
Height123 mm (4.85")
Width82 mm (3.25")
Depth63 mm (2.5")
Weight700 g (~1.5 lbs.)
Mounting4x M4 (front or rear)See mounting documentation
Enclosure RatingIP54Dust and moisture protection
CertificationsCE/FCCIndustrial compliance

Power Specifications​

ParameterSpecificationNotes
Input Voltage19-24 VDCIndustrial standard
Maximum Power18WPeak consumption
Typical Power15WNormal operation
Current Draw~1A @ 24VApproximate

Environmental Specifications​

ParameterSpecificationNotes
Operating Temperature0-45°CIndustrial environment
Storage Temperature-20 to +70°CNon-operating
Humidity10-90% RHNon-condensing
Vibration ResistanceIndustrial gradeSuitable for production lines

Image Sensor Specifications​

ParameterSpecificationNotes
Sensor ModelSony IMX296Industrial grade
Resolution1.6 MP1456 x 1088 pixels
Frame Rate60 fpsMaximum
Sensor Size1/2.9"
Shutter TypeGlobal ShutterMotion immunity
Color/MonoColorRGB color sensor
Pixel Size3.45 μm x 3.45 μm

Processor System Specifications​

NVIDIA Xavier NX Computing Module​

ComponentSpecificationDetails
CPU6-core NVIDIA Carmel ARM® v8.2 64-bitMax frequency: 1.9GHz
Cache6MB L2 + 4MB L3
GPU384-core NVIDIA Volta GPU
AI Acceleration48 Tensor CoresDeep learning optimization
Memory8 GB 128-bit LPDDR4System memory
Storage16 GB eMMCInternal storage

Optical System Specifications​

Lens System​

ParameterSpecificationNotes
Mount TypeS-Mount (M12)Standard threading
Standard Lens12mm variable focal lengthFactory default
Available Options6mm, 8mm, 16mm, 25mmOptional lenses
Focus TypeMotorized variable focusProgrammable
ApertureAuto/ManualSoftware controlled

Illumination System​

ParameterSpecificationNotes
LED Count8 x PWM white LEDsProgrammable intensity
Control MethodPWM (Pulse Width Modulation)Precise control
LED TypeWhite LEDColor-neutral illumination
Power ManagementIntegrated thermal controlHeat management

Connectivity Specifications​

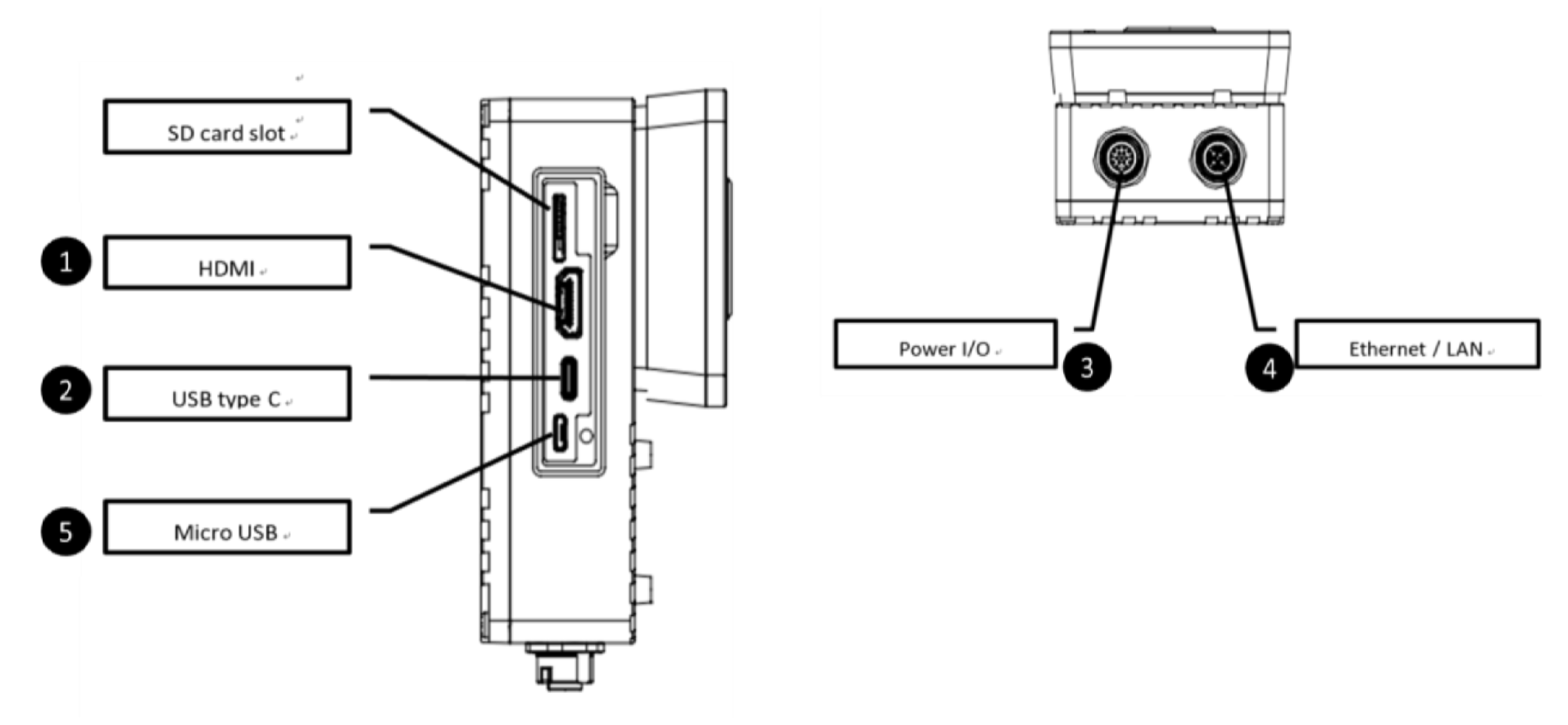

External Ports​


Port #TypeConnectorDescription
1HDMIHDMI 2.0Not used in OV20i
2USB Type-CUSB 3.0Optional ethernet dongle
3Power I/OM12 A-Coded 17 PinPower, Digital I/O, RS485
4EthernetM12 X-CodedNetwork, PLC communication
5Micro USBMicro USBEmergency programming access

Network Specifications​

ParameterSpecificationNotes
Ethernet10/100/1000 Base-TGigabit capable
ProtocolsEthernet/IP, ProfinetIndustrial protocols
Default IP192.168.0.100Static default
Emergency IP192.168.55.1Micro-USB access
DHCP SupportYesConfigurable

Digital I/O Specifications​

SignalPinCountTypeSpecifications
Trigger Input161Digital InputNPN Active Low - Pull to GND to activate
Digital Input 081Digital InputNPN Active Low - Pull to GND to activate
Digital Input 191Digital InputNPN Active Low - Pull to GND to activate
Digital Output 0101Digital OutputNPN Sinking - Max 100mA, sinks to GND when active
Digital Output 1111Digital OutputNPN Sinking - Max 100mA, sinks to GND when active
Reset151System ControlNPN Active Low - Pull to GND to reboot


I/O Electrical Characteristics​

ParameterSpecificationNotes
Input Voltage Range0-24 VDC
Input LogicPull to GND = ActiveNPN compatible
Output Current100 mA maximumPer output
Output LogicSinking to GNDWhen active
Output StateFloatingWhen inactive
note

Critical I/O Notes:

  • DIO GND (Pin 7) must be connected to GND for digital input functionality to work
  • DIO GND is tied to GND through a thermal fuse
  • When connecting to systems with different power supplies, use DIO GND to tie grounds together
  • Reset (Pin 15) - Pull to GND to reboot camera (not needed for most applications, keep floating to avoid unexpected restarts)

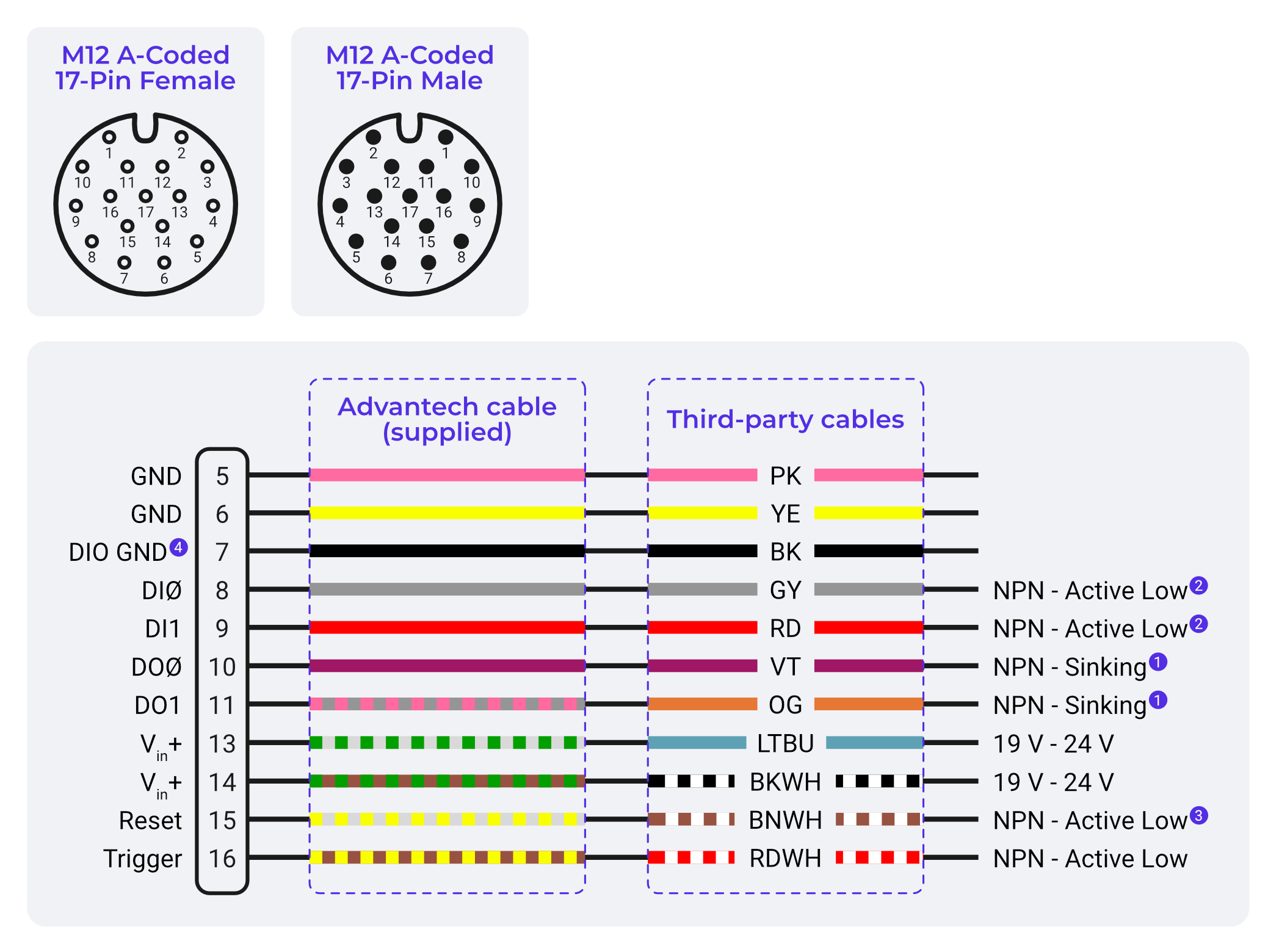

M12 A-Coded 17 Pin Connector Pinout​

Pin Assignment Table​

PinSignalWire Color (Advantech)Wire Color (3rd Party)Function
5GNDPink (PK)Pink (PK)Power Ground
6GNDYellow (YE)Yellow (YE)Power Ground
7DIO GNDBlack (BK)Black (BK)Digital I/O Ground
8DI0Gray (GY)Gray (GY)Digital Input 0 - NPN Active Low
9DI1Red (RD)Red (RD)Digital Input 1 - NPN Active Low
10DO0Violet (VT)Violet (VT)Digital Output 0 - NPN Sinking
11DO1Orange/Pink (OG)Orange (OG)Digital Output 1 - NPN Sinking
13Vin+Light Blue (LTBU)Light Blue (LTBU)Power Input Positive (19-24V)
14Vin+Black/White (BKWH)Black/White (BKWH)Power Input Positive (19-24V)
15ResetBrown/White (BNWH)Brown/White (BNWH)System Reset - NPN Active Low
16TriggerRed/White (RDWH)Red/White (RDWH)Trigger Input - NPN Active Low
1,2,3,4,12,17Reserved--Not connected

Power Connections​

Dual Power Input Design:

  • Pin 13 & 14: Both connected to Vin+ (19-24V positive)
  • Pin 5 & 6: Both connected to GND (power ground)
  • Dual connections provide redundancy and ensure consistent voltage across components
note

If there is insufficient power, modify the wiring to ensure that the 24V power supply is connected to both Vin+ ports (pins 13 & 14), rather than only connecting it to a single terminal.

Image Signal Processing​

FeatureCapabilityNotes
Color DebayeringHardware acceleratedReal-time processing
Sharpness ControlAdjustableSoftware configurable
White BalanceAuto/ManualCCM correction
Noise ReductionDark noise correctionLow-light performance
Brightness ControlSoftware adjustableExposure compensation
Lens Distortion CorrectionSoftware-basedFocal length specific

AI Processing Specifications​

ParameterSpecificationNotes
AI FrameworkNVIDIA DeepStream SDKOptimized for Xavier NX
Model TypesClassification, SegmentationAI-based inspection
Training ModesFast, Accurate/ProductionClassification only
Inference SpeedReal-time60 fps capable
Model StorageLocal on-device16 GB eMMC

Synchronization & Triggering​

ModeTypeDescription
Hardware TriggerDigital InputExternal signal triggering
Software TriggerNetwork/ManualPLC or manual triggering
Free-RunContinuousAutomatic triggering
Aligner TriggerSoftwareTemplate-based triggering
Interval TriggerTimer-basedPeriodic triggering

Performance Specifications​

ParameterSpecificationNotes
Processing SpeedReal-time @ 60 fpsDepends on AI model complexity
Latency< 100msTypical trigger to result
AccuracyModel dependentBased on training quality
ThroughputUp to 3600 inspections/minuteAt 60 fps

Standard Package Contents​

ItemQuantityDescription
OV20i Camera1Main camera unit
Mounting Plate1Hardware included
I/O Power Cable1M12 connector with terminal block
Ethernet Cable1M12 to RJ45
Documentation1 setQuick start guide

Compliance & Standards​

StandardComplianceDescription
CE MarkingYesEuropean conformity
FCCYesUS electromagnetic compatibility
IP RatingIP54Dust and water protection
IEC 704-1:1982YesSound pressure ≤ 70 dB(A)
Industrial StandardsMultipleEthernet/IP, Profinet

🔗 See Also​

Technical Support​

For technical assistance:

Specifications subject to change without notice. For the most current specifications, consult the latest documentation.
